Mettre en évidence:
D70-LE O-Ring seal
, D65PX-15 O-Ring seal
, high-performance O-Ring seals
1. Quick Details of seal 07000-72015 :
| Part NO. |
07000-72015 |
| Machine |
Crawler Dozer |
| Size |
5.7 mm thickness |
| Material |
SILICON |
| Oil seal type |
O RING |
2. 07000-72015 parts on group :
| NO. |
PART NO. |
PRAT NAME |
QTY |
| 1 |
14X-960-0010 |
CONTROL VALVE ASSEMBLY |
1 |
| 2 |
07042-20108 |
PLUG |
8 |
| 3 |
01011-51030 |
BOLT |
2 |
| 4 |
01010-51080 |
BOLT |
3 |
| 5 |
01602-21030 |
WASHER,SPRING |
5 |
| 6 |
14X-960-5121 |
SPOOL |
1 |
| 7 |
15B-960-5330 |
YOKE |
1 |
| 8 |
01580-10806 |
NUT |
1 |
| 9 |
113-15-29110 |
SEAL,OIL |
2 |
| 10 |
175-916-4130 |
COLLAR |
1 |
| 11 |
175-916-4140 |
SPRING |
1 |
| 12 |
175-916-4150 |
STOPPER |
1 |
| 13 |
14X-960-5140 |
DETENT |
1 |
| 14 |
01010-50835 |
BOLT |
1 |
| 15 |
01643-50823 |
WASHER |
1 |
| 16 |
15B-960-5230 |
COVER |
1 |
| 17 |
07000-73035 |
O-RING |
1 |
| 18 |
175-916-4180 |
PLUG |
2 |
| 19 |
07000-72015 |
O-RING |
2 |
| 20 |
04260-00793 |
BALL |
2 |
| 21 |
701-33-31330 |
GUIDE |
2 |
| 22 |
709-62-31180 |
SPRING |
2 |
| 23 |
01010-50820 |
BOLT |
2 |
| 24 |
01602-20825 |
WASHER,SPRING |
2 |
| 25 |
14X-960-5131 |
SPOOL |
1 |
| 26 |
15B-960-5330 |
YOKE |
1 |
| 27 |
01580-10806 |
NUT |
1 |
| 28 |
175-916-4210 |
COLLAR |
2 |
| 29 |
14X-960-5110 |
SPRING |
1 |
| 30 |
175-916-4230 |
WASHER |
1 |
| 31 |
01010-50816 |
BOLT |
1 |
| 32 |
01643-50823 |
WASHER |
1 |
| 33 |
15B-960-5240 |
COVER |
1 |
| 34 |
07000-73048 |
O-RING |
1 |
| 35 |
01010-50820 |
BOLT |
3 |
| 36 |
01602-20825 |
WASHER,SPRING |
3 |

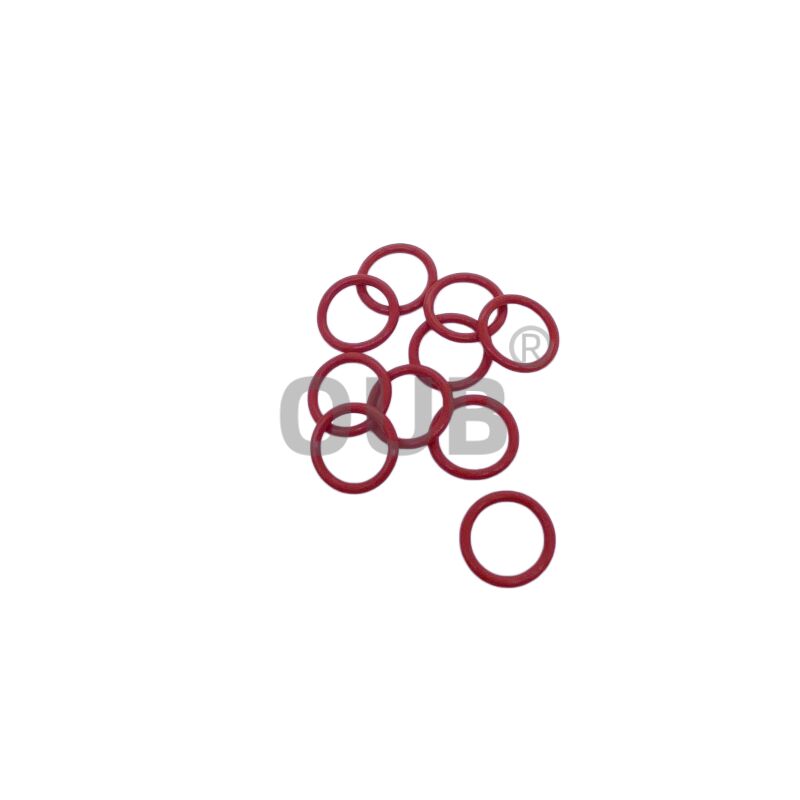

3. 07000-72015 picture:
4. Service part number :
| PART NO. |
PART NO. |
Part NO. |
| 707-35-52690 |
707-51-45640 |
707-99-75600 |
| 707-99-59620 |
707-51-14640 |
707-99-76030 |
| 707-99-59680 |
707-51-40650 |
707-44-85180 |
| 707-99-59690 |
707-51-45640 |
707-44-10150 |
| 707-99-59740 |
707-51-45650 |
707-44-85150 |
| 707-99-62010 |
707-51-50640 |
707-44-90070 |
| 707-99-62020 |
707-51-55630 |
707-44-90080 |
| 707-99-62120 |
707-51-55640 |
707-44-90180 |
| 707-99-64010 |
707-51-60640 |
707-44-90150 |
| 707-99-64030 |
707-51-60650 |
707-44-95180 |
| 707-99-64040 |
707-51-65630 |
707-44-95150 |
| 707-99-64050 |
707-51-65640 |
707-44-10080 |
| 707-99-64080 |
707-51-65650 |
707-44-10180 |
| 707-99-64120 |
707-98-37600 |
707-44-10250 |
| 707-98-61100 |
707-98-37610 |
707-35-52700 |
5. FAQ
Q: What are the key properties of silicone rubber for these O-rings?
A: Silicone offers excellent heat resistance (operating range roughly -60°C to +200°C), great flexibility even at low temperatures, and strong resistance to ozone, weathering, and aging. It works well with hot air, steam, and non-polar fluids, though it is not recommended for use with most mineral oils or fuels.
Q: How do I install these small O-rings correctly?
A: Start by thoroughly cleaning the O-ring groove and mating surfaces to remove all dirt, burrs, or old seal residue. Lightly lubricate the O-ring with a compatible fluid or grease to ease installation. Carefully fit the seal into the groove, making sure it does not twist, overstretch, or get pinched. When assembling components, avoid sharp edges that could cut or damage the seal.
Q: How do I install this O-ring correctly?
A: Start by thoroughly cleaning the O-ring groove and mating surfaces to remove dirt, burrs, or old seal residue. Lightly lubricate the O-ring with a compatible fluid or grease to ease installation. Carefully fit the seal into the groove, making sure it does not twist, overstretch, or get pinched. When assembling components, use proper tools to avoid damaging the seal edges.
Q: What common issues cause O-ring failure?
A: Common causes include improper installation (twisting, pinching, or overstretching), chemical incompatibility with the fluid, excessive heat or cold leading to hardening or brittleness, surface scratches on mating parts, and using the wrong size or durometer.
6. Exhibition and Wearhous
Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
